High-Precision Battery Charge and Discharge Tester 60V 120A with Fully Independent Channels for Lithium Battery Testing

High-Precision Battery Charge and Discharge Tester 60V 120A with Fully Independent Channels for Lithium Battery Testing

نام تجاری:	Sinuo
شماره مدل:	SN552-30V200a
مقدار تولیدی:	1
قیمت:	Customized
شرایط پرداخت:	T/T
توانایی عرضه:	1 ست در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

Calibration Certificate (Cost Additional)

محدوده ولتاژ تخلیه:

8 ولت تا 60 ولت

محدوده ولتاژ شارژ:

0V~60V

حداقل جریان خروجی:

± 300 میلی آمپر

حداکثر جریان خروجی:

± 120A

زمان تبدیل فعلی:

≤40 میلی‌ثانیه

زمان پاسخ شروع فعلی:

≤20ms

حالت عمل کانال:

کاملاً مستقل

تعداد کانال های اصلی:

2 کانال

جزئیات بسته بندی:

مورد تخته سه لا

قابلیت ارائه:

1 ست در ماه

برجسته کردن:

High-Precision Battery Charge and Discharge Tester,60V 120A Battery Pack Testing System,Fully Independent Channels Lithium Battery Testing Equipment

60V 120A Battery Pack Testing System

Fully Independent Channels Lithium Battery Testing Equipment

توضیحات محصول

Battery Overcharge & Over-Discharge Test Equipment

High-Precision Battery Pack Testing System - 60V 120A Lithium Battery Testing Life Cycle Tester

Equipment Overview

This feedback-type high-precision battery pack detection equipment enables comprehensive testing of lithium-ion battery performance indicators including capacity, state of charge, overcharge, and over-discharge capabilities.

High power, efficiency, precision, and performance characteristics
Electric energy feedback technology significantly reduces heat emission and power consumption
Composed of host computer, middle computer, DC/AC module, DC/DC module, lower computer, and data acquisition system
Real-time collection of voltage, current, capacity, and energy data for individual battery cells
Optional battery temperature data collection capability
Specialized database storage with comprehensive data statistics, analysis, and report generation

Technical Parameters

Channel Configuration

Number of Main Channels	2 Channels
Channel Action Mode	Fully Independent

Main Channel Working Modes

Charging: Constant Current Charging (CC), Constant Voltage Charging (CV), Constant Current Constant Voltage Charging (CCCV)
Discharging: Constant Current Discharge (CD), Constant Power Discharge (CP), Constant Voltage Discharge
Other: Standing, Stopping

Main Channel Specifications

Parameter	Specification
Test Termination Conditions	Time, Voltage, Current, Capacity
Voltage Range (Charging)	0V~60V
Voltage Range (Discharging)	8V~60V (8V device port voltage)
Voltage Accuracy	±(0.05%RD+0.05%FS)
Voltage Resolution	0.1mV
Maximum Output Current	±120A
Minimum Output Current	±300mA
Current Accuracy	±(0.05%RD+0.05%FS)
Current Resolution	0.1mA
Current Start Response Time	≤20ms
Current Conversion Time	≤40ms
Time Resolution	1000mS

Power & Efficiency

Parameter	Specification
Output Power	Maximum 7200W per channel continuous operation
Stability	±0.1%FS
Highest Charging Efficiency	85%
Highest Discharging Efficiency	85%
Harmonic	≤3%
Power Factor	≥0.99

Additional Features

Auxiliary Channel Cutoff	Main channel step stop/switch based on auxiliary channel conditions
Communication Method	RJ-45 network interface for stable, real-time long-distance data collection

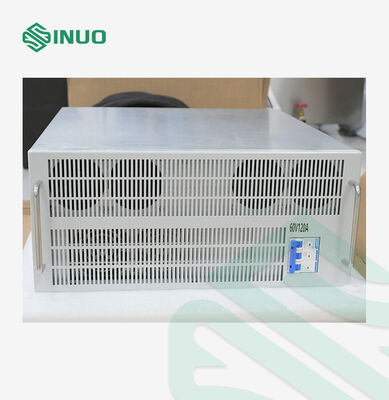

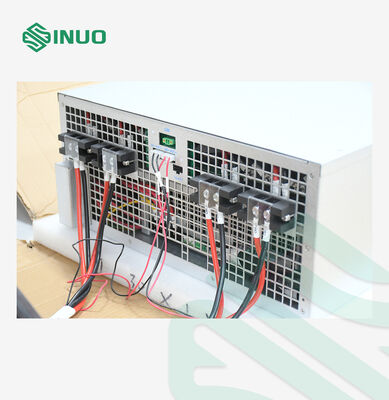

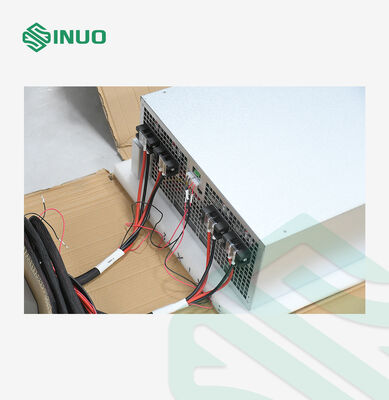

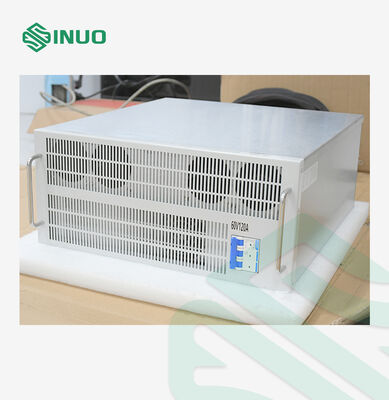

Product Details
