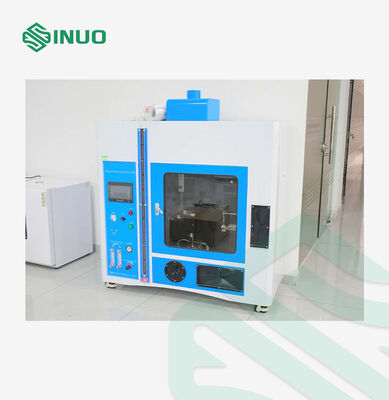

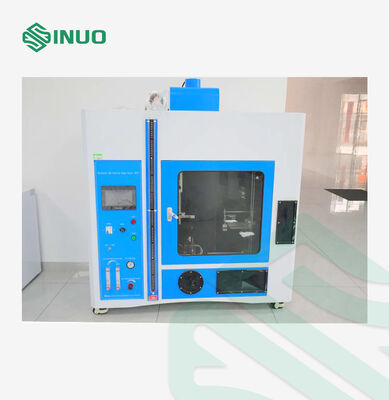

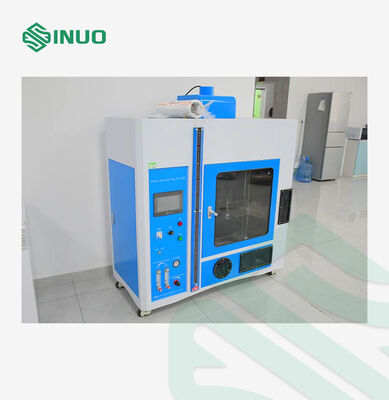

IEC 60695 Flame Test Chamber Horizontal and Vertical Flame Test Chamber 500W 50W

IEC 60695 Flame Test Chamber Horizontal and Vertical Flame Test Chamber 500W 50W

نام تجاری:	Sinuo
شماره مدل:	SN771
مقدار تولیدی:	1
قیمت:	Customized
شرایط پرداخت:	T/T
توانایی عرضه:	30 ست در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

Calibration Certificate (Cost Additional)

استاندارد کاربردی:

IEC 60695-11-3 و غیره

روش کنترل:

PLC و صفحه لمسی

جریان گاز 50 وات:

105±5 میلی لیتر در دقیقه

زاویه تست شعله 50 وات:

0 درجه، 45 درجه

جریان گاز 500 وات:

30±965 میلی لیتر در دقیقه

زاویه تست شعله 500 وات:

20 درجه

زمان سوزش:

0-9999X0.1S، می تواند از پیش تنظیم شود

برنامه های کاربردی شعله:

0-9999 بار، می تواند از پیش تنظیم شود

جزئیات بسته بندی:

مورد تخته سه لا

قابلیت ارائه:

30 ست در ماه

برجسته کردن:

IEC 60695 flame test chamber,horizontal vertical flame tester,500W flammability testing equipment

horizontal vertical flame tester

500W flammability testing equipment

توضیحات محصول

IEC 60695 Flame Test Chamber - Horizontal and Vertical Flame Testing

This Horizontal and Vertical Flammability Tester is designed to assess the ignitability and flame propagation characteristics of plastic and non-metallic materials used in electrical and electronic products.

Compliance Standards

Conforms to UL94, IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, IEC60695-11-10, IEC60695-11-20.

Equipment Overview

This testing chamber accurately simulates the influence of small open flames at the early stage of a fire, helping manufacturers determine the fire hazard potential of materials used in household appliances, IT equipment, audio/video devices, and other products.

Applications

Plastic materials and non-metallic solid materials
Foam plastics with density ≥ 250kg/m³ (tested as per ISO845)
Horizontal and vertical burning tests for comparative combustion characteristics

Key Features

Integrated inlet ignition system with a flame delay of 0.1 seconds for stable ignition
Matte black background for optimal flame visibility and contrast
High-precision digital timers for accurate flame application and afterflame/afterglow measurement

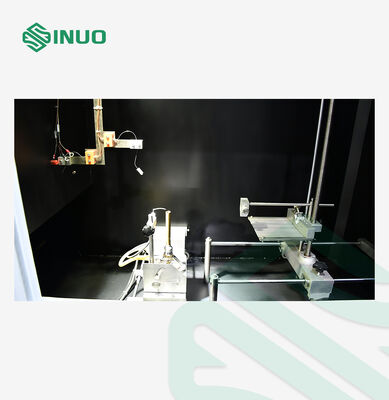

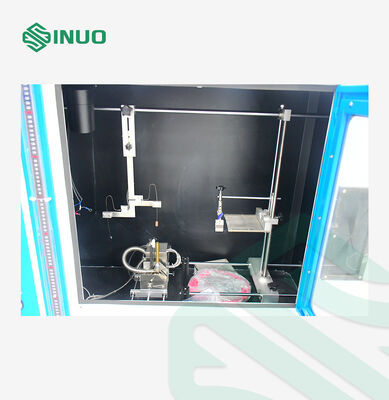

Multi-functional flame measuring gauge for adjustable flame length and positioning
Full stainless steel enclosure ensures durability and corrosion resistance
Large observation window for safe and clear test monitoring
Compact design incorporating international best practices
Complies with multiple global safety testing standards

Technical Parameters

Test Flame Calibration	Specifications
Distance between burner port to temperature measuring copper block	50W: 10±1 mm; 500W: 55±1 mm
Thermocouple	American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°
Temperature rise time from 100±2° to 700°±3°	50W: 44±2S; 500W: 54±2S
Flame height	50W: 20±2mm (no internal and external flame); 500W: Inner flame: 40±2mm, Outer flame: 125±10mm
Temperature measuring copper head	50W: Ф5.5mm±0.01mm, weight before drilling 1.76±0.01g; 500W: Ф9mm±0.01mm, weight before drilling 10±0.05g
Back Pressure Water Column Height of U-Shaped Pressure Gauge	50W: 10mm; 500W: 125±5 mm
Test Angle	50W: 0°,45°; 500W: 20°

Parameter	Specification
Working voltage	120V/60Hz
Power/grade	50W and 500W double power switching
Control operation mode	PLC control, 7 inch color touch screen operation, with infrared remote controller
Blast burner standard	IEC60695-11-3/IEC60695-11-4/10, UL94, etc. inner diameter: Φ9.5±0.3mm, length: 100mm, made of brass
Gas pressure	0.1MPa
Gas flow	50W: 105±5ml/min or 18±1mm; 500W: 965±30ml/min or 117±3 mm, flow meter adjustment
U type pressure gauge back pressure water column height	50W: 10mm; 500W: 125±5 mm
Test angle	50W: 0°,45°; 500W: 20°
Burning time	0-9999X0.1S Can be preset
Burning times	0-9999 times, Can be preset
Residual flame/Residual glow	0-9999X0.1S Can be displayed
