IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System

IPX8 Test Chamber with PLC Control and 4.0 Bar High-Pressure Water Immersion Test System

نام تجاری:	Sinuo
شماره مدل:	SN4411
مقدار تولیدی:	1
شرایط پرداخت:	T/T
توانایی عرضه:	10 ست در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

Calibration Certificate (Cost Additional)

قطر داخلی محفظه:

قطر 350 میلی متر

ارتفاع داخلی محفظه:

> 400 میلی متر

حداکثر نیروی فشار:

4.0 بار

محدوده تست کد IP:

تست IPX8

مواد مخزن:

فولاد ضد زنگ SUS304

اندازه نمونه:

W170mm*D90mm*H30mm

محرک:

درایو کمپرسور هوای خارجی

کنترل کنید:

کنترل PLC

جزئیات بسته بندی:

بسته بندی صادراتی

قابلیت ارائه:

10 ست در ماه

برجسته کردن:

SUS304 Stainless Steel IPX8 Test Chamber,PLC Control High-Pressure Water Tank,4.0 Bar Water Immersion Test System

PLC Control High-Pressure Water Tank

4.0 Bar Water Immersion Test System

توضیحات محصول

High-Pressure Water Immersion Tank Automotive Component Waterproof IPX8 Test System

This high-pressure water immersion tank provides a reliable and precise solution for IPX8 continuous immersion testing, designed to verify waterproof protection performance for electronic and electrical products, automotive components, household appliances, seals, and lighting products.

Compliance Standards

Conforms to IEC 60529:2013 IPX8 standards

Product Overview

Constructed from high-quality 304 stainless steel, this test system ensures excellent durability and corrosion resistance. The fully PLC-controlled system allows all test parameters—including immersion depth, pressure, and duration—to be easily configured and monitored via an intuitive touch-screen interface.

With automatic water supply and pressure control, the equipment delivers stable, repeatable, and highly accurate test conditions, enabling manufacturers and laboratories to confidently evaluate product reliability under real-world immersion environments.

Technical Specifications

Pressure Management	Manual adjustment
Tank Height	590mm
Tank Inner Diameter	350mm
External Dimensions	Approximately 360mm outer diameter * 900mm height
Stainless Steel Thickness	5mm
Time Control	1–99,999 seconds
Maximum Pressure Limit	Factory configurable with pressure switch protection (typically auto-vent at 550 KPa)
Pressure Display	Touchscreen pressure setting and display
Pressure Adjustment Range	Atmospheric pressure to 500 kPa (1–50m water depth)
Control System	Touch screen control
Pressure Protection	Spring-loaded safety relief valve; Program control with automatic shutdown and pressure release if limits exceeded
Pressure Release	Automatic after test completion
Lid Operation	Manual opening and closing
Pressurization System	External air supply (user provided, ≥ 5 kg)
Container Material	304 stainless steel
Safety Notification	Audible alarm system
Power Requirements	AC 220-240V, 50Hz±10%; 1KW power; Requires separate 16A circuit breaker with terminal blocks; Power cord ≥2.5㎡
Environmental Conditions	Temperature: 15℃ to 35℃; Relative humidity: 25% RH to 75% RH; Atmospheric pressure: 86 kPa to 106 kPa
Drain Pipe Diameter	1/2 inch pipe

Pressure Gauge Conversion

0.1MPa	= 1Kg/cm² = 10M water depth
0.2MPa	= 2Kg/cm² = 20M water depth
0.3MPa	= 3Kg/cm² = 30M water depth
0.4MPa	= 4Kg/cm² = 40M water depth

Installation Note: Plan equipment placement carefully and install the circuit breaker nearby in advance. The drain pipe should be installed below the circuit breaker and close to the ground.

System Features

Pressure protection and explosion-proof device
Drainage and pressure relief system
Automatic water supply and pressure control
PLC-controlled operation with touchscreen interface
Stainless steel construction for durability
Comprehensive safety systems

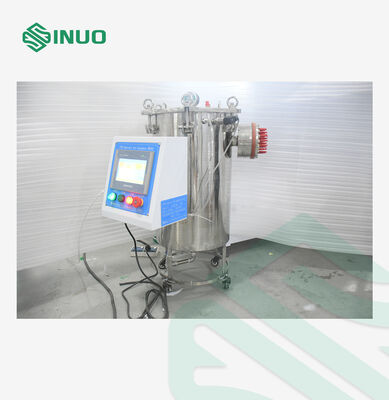

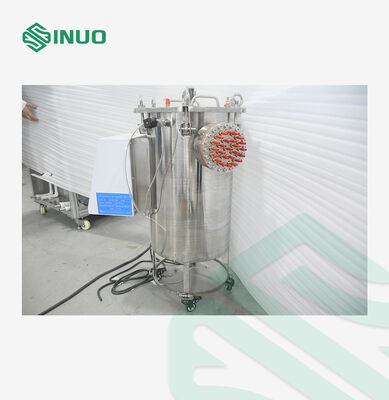

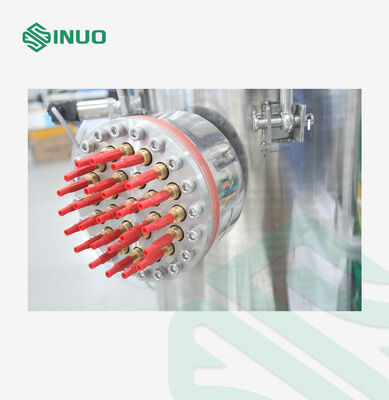

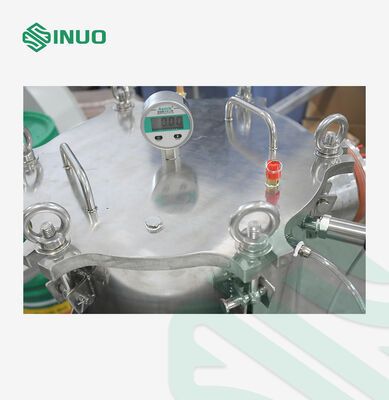

Product Images
