IEC 60529 IPX8 Test Chamber Immersion Test Equipment for Automotive Component

IEC 60529 IPX8 Test Chamber Immersion Test Equipment for Automotive Component

نام تجاری:	Sinuo
شماره مدل:	SN4411
مقدار تولیدی:	1
شرایط پرداخت:	T/T
توانایی عرضه:	10 ست در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

Calibration Certificate (Cost Additional)

ارتفاع داخلی محفظه:

> 400 میلی متر

قطر داخلی محفظه:

قطر 350 میلی متر

محدوده تست کد IP:

تست IPX8

حداکثر نیروی فشار:

4.0 بار

اندازه نمونه:

W170mm*D90mm*H30mm

مواد مخزن:

فولاد ضد زنگ SUS304

کنترل کنید:

کنترل PLC

محرک:

درایو کمپرسور هوای خارجی

جزئیات بسته بندی:

بسته بندی صادراتی

قابلیت ارائه:

10 ست در ماه

توضیحات محصول

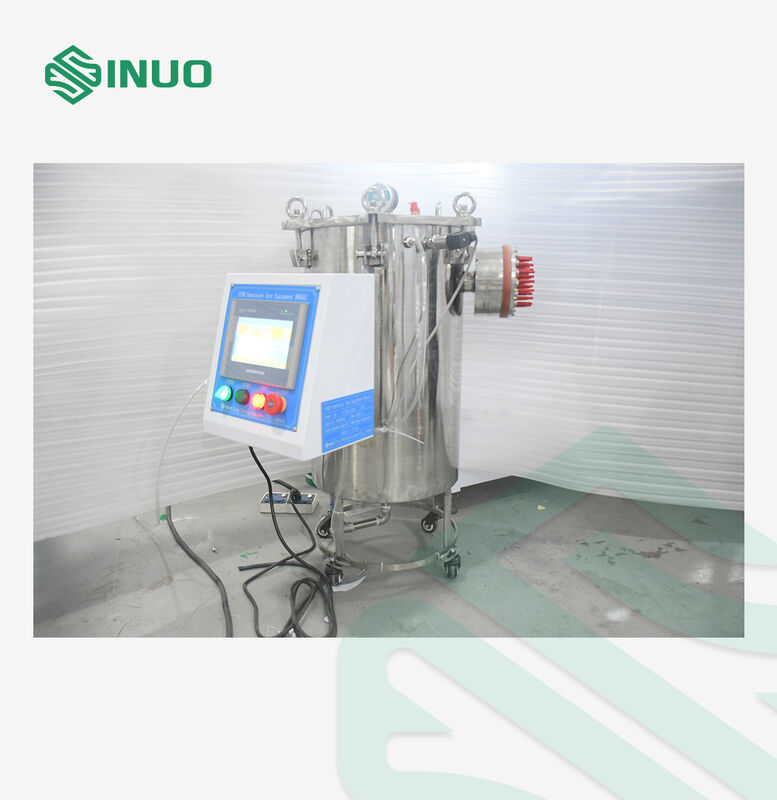

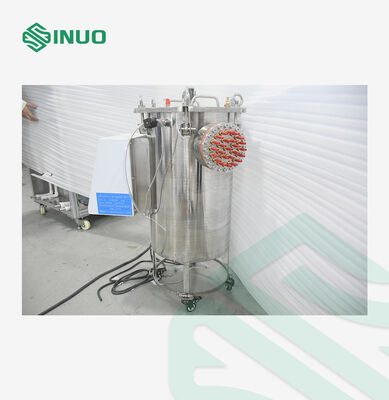

High Pressure Water Tank IPX8 Immersion Test Equipment IEC 60529

Complied Standards & Clauses

Conforms to IEC 60529:2013 IPX8 etc.

Product Overview

This test is applicable to electrical and electronic products that are waterproof and may be subjected to immersion in water during transportation or use. The test specimens are immersed in a water tank to a specified depth and subjected to a specified pressure. After the test, the extent of water ingress and any changes in performance are examined.

Technical Parameters

Inner diameter of the tank	350mm
Height inside the tank	590mm
External dimensions of the tank	Approximately 360mm in outer diameter * 900mm in height
Stainless steel tank thickness	5mm
Time control	1～99999S
Pressure management methods	Manual adjustment
Pressure display method	The touchscreen display allows for pressure setting and pressure display via the touchscreen.

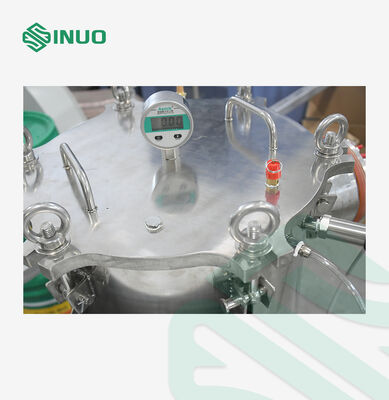

Pressure gauge adjustment range	Atmospheric pressure to 500 kPa (1–50m water depth)
Maximum limit pressure	The settings are configurable at the factory. It features pressure switch protection, typically set to automatically vent when the pressure reaches 550 KPa.
Pressure protection	Spring-loaded safety relief valve; Program control: If the pressure exceeds the upper limit, the system immediately shuts down and releases the pressure.
Pressure release method	Automatic pressure release after the test is completed.
Lid opening method	Manual opening and closing
Pressurization system	External air supply (to be provided by the user, ≥ 5 kg)
Control system	Touch screen control
Container material	304 stainless steel
Features	This water immersion test device is equipped with a pressure protection and explosion-proof device and a drainage and pressure relief device.
Safety and protection system	Alarm sound notification
Equipment usage conditions
Drain pipe diameter	Please plan the equipment placement carefully, and install the circuit breaker nearby in advance. The drain pipe should be installed below the circuit breaker, and the drain pipe (1/2 inch pipe) should be installed close to the ground.
Power requirements	AC 220-240V, 50Hz±10%; Power: 1KW; Install a separate 16A circuit breaker; the circuit breaker must have terminal blocks, and the power cord must be ≥2.5㎡
Environmental conditions	Temperature: 15℃ to 35℃; Relative humidity: 25% RH to 75% RH; Atmospheric pressure: 86 kPa to 106 kPa
The pressure gauge reading corresponds to the water depth	0.1MPa=1Kg/cm²=10M； 0.2MPa=2Kg/cm²=20M； 0.3MPa=3Kg/cm²=30M； 0.4MPa=4Kg/cm²=40M；
