جزئیات محصولات

خونه محصولات

960L Programmable Temperature and Humidity Environmental Testing Equipment

960L Programmable Temperature and Humidity Environmental Testing Equipment

نام تجاری:	Sinuo
شماره مدل:	SN881-960L
مقدار تولیدی:	1
شرایط پرداخت:	T/T
توانایی عرضه:	10 ست در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

Calibration Certificate (Cost Additional)

انحراف دما:

≤±2.0℃

انحراف رطوبت:

≤±3٪

ابعاد داخلی:

2000*600*800 میلی متر

ابعاد خارجی:

2250*1650*1820 میلی متر

زمان گرمایشی:

≧2-3 درجه سانتیگراد در دقیقه

زمان خنک شدن:

≧ 1 درجه سانتیگراد در دقیقه ، متوسط بدون بار

محدوده دما:

-20 ° C ~+150 ° C

محدوده رطوبت:

20٪ تا 98٪ RH

جزئیات بسته بندی:

بسته بندی صادراتی

قابلیت ارائه:

10 ست در ماه

برجسته کردن:

960L programmable temperature test chamber,humidity environmental testing equipment,temperature humidity chamber with warranty

humidity environmental testing equipment

temperature humidity chamber with warranty

توضیحات محصول

960L Programmable Temperature and Humidity Environmental Testing Equipment

Complied Standards & Clauses

It conforms to standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product Overview

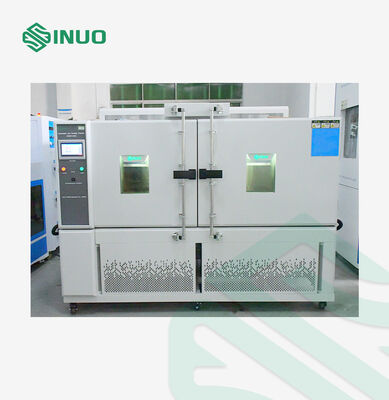

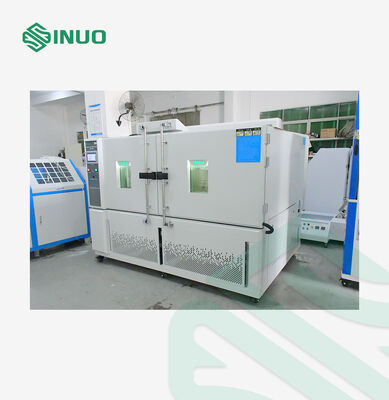

The 960L Temperature Humidity Chamber is a high-performance environmental testing system engineered to recreate real-world climatic conditions with exceptional accuracy. Designed to simulate extreme temperatures, rapid temperature changes, and controlled humidity levels, this chamber provides a reliable platform for evaluating the durability and stability of a wide range of products — including electronics, electrical appliances, plastics, automotive parts, and industrial components.

With its spacious 960-liter capacity, precise control system, and programmable test cycles, the chamber enables manufacturers to expose samples to harsh environmental stresses such as heat, cold, moisture, and dryness. This helps uncover potential weaknesses early, optimize product design, and ensure long-term performance throughout storage, transportation, and actual field use.

Built for modern laboratories and production lines, the 960L Temperature Humidity Chamber is an essential piece of equipment for reliability testing, quality assurance, and compliance with international standards — delivering consistent, repeatable, and trustworthy test results every time.

Technical Parameters

Technical Parameters
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size (mm)	External Size (mm)
	2000600800	225016501820
Humidity Range	20%～98%RH (Temperature: 20℃～85℃, refer to the temperature and humidity controllable range diagram, no active heat load)
Temperature Range	-20°C ~+150°C
Humidity fluctuation	≤2.5%
Working noise	A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)
Temperature deviation	≤±2.0℃
Temperature fluctuation	±0.5℃
Humidity Deviation	≤±3%
Cooling Rate	≧1°C/min, average no load
Heating Rate	≧2-3°C/min
Load condition	None

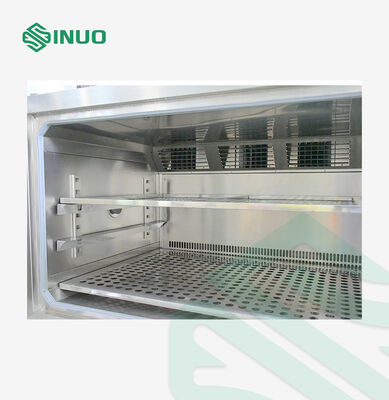

Insulation enclosure structure	1. Outer wall material: A3 board spraying. 2. Inner wall material: brushed stainless steel plate SUS﹟304. 3. Chamber thermal insulation material: 100mm high temperature resistant rigid polyurethane foam. 4. Chamber door insulation material: 100mm high temperature resistant rigid polyurethane foam.
Bottom structure strength	The weight capacity of the track at the bottom of the test chamber: ≤100Kg/m² (load)
Air conditioning channel	1. Stainless steel long-axis centrifugal fans: 2 sets/90W. 2. Fan, heater, evaporator (also dehumidifier), drainage device, pressure balance port, adjustable air deflector, temperature sensor
Standard configuration of test chamber	1. Observation window: 400x600x40mm 3-layer vacuum tempered glass 2. Flat embedded handles 3. Door hinges: SUS #304 imported hinges 4. Energy-saving lamp inside the chamber 5. Lead hole: φ50mm 1 piece

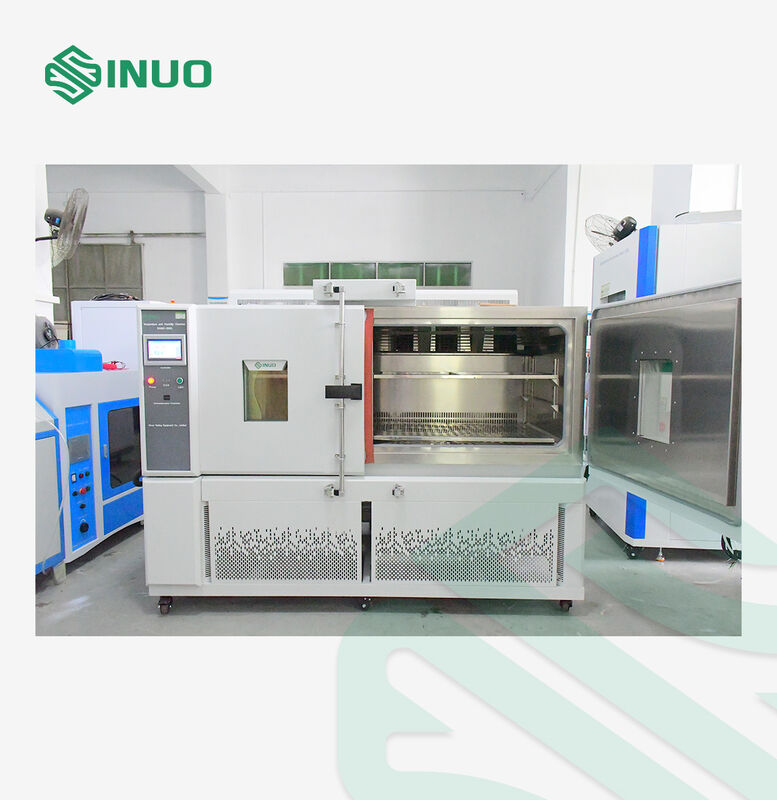

Chamber door	1. Double doors open outwards, with hinges on the left and right sides and a handle in the middle (when facing the front of the chamber). 2. Equipped with a safety door locking mechanism (the door can be opened in the test room), the door is equipped with electric heat to prevent condensation, and the visible range of the insulating glass observation window (W400×H600mm). The door frame is equipped with an anti-condensation electric heating device.

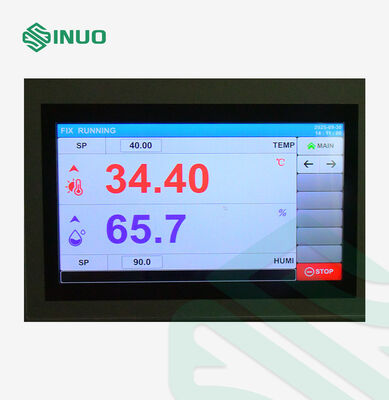

Control panel	Controller 7-inch display screen, temperature (humidity) control display screen, operating indicator light, and lighting button.
Mechanical room	Refrigeration unit, compressor water tray, pressure relief device, heating device
Power distribution cabinet	Distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker
Heater	1. Fin-type radiator-shaped stainless steel electric heater 2. Heating control method: SSR (Solid State Relay) non-contact equal period pulse width modulation 3. Heating power: approximately 3KW
Power cable hole	Located on the back of the chamber

Details
