IEC60950 Reliable Fire Protection Testing Hot Flaming Oil Test Device

IEC60950 Reliable Fire Protection Testing Hot Flaming Oil Test Device

نام تجاری:	Sinuo
شماره مدل:	SN7713A
مقدار تولیدی:	1
قیمت:	Customized
شرایط پرداخت:	T/T
توانایی عرضه:	5 sets/month

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

Place of Origin:

China

گواهی:

Calibration Certificate (Cost Additional)

Hot flaming oil pouring speed:

1 ml/s

Hot flaming oil burning time:

1 min

Hot flaming oil pouring time:

10s

Hot flaming oil pouring height:

100mm

Equipment weight:

147KGS

Equipment size:

1130mm* 600mm* 1400mm

Working voltage:

Match client’s local power supply requirements

Control & display:

Integrated PLC & touch screen

Packaging Details:

Export packing

Supply Ability:

5 sets/month

توضیحات محصول

IEC60950 Reliable Fire Protection Testing Hot Flaming Oil Test Device

Complied Standards & Clauses

The hot flaming oil test device conforms to Annex S.3 of IEC 62368-1: 2018, IEC60950-1:2005 and IEC60950-1:2013 clause 4.6.2, Annex A.3.

Equipment Structure

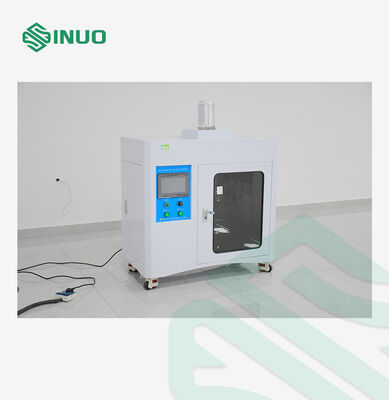

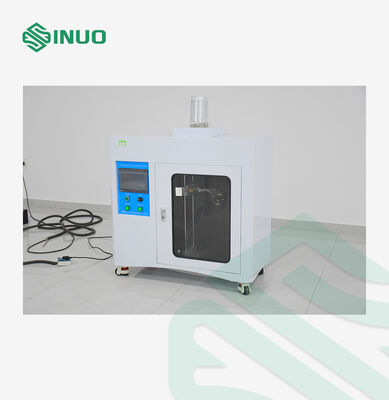

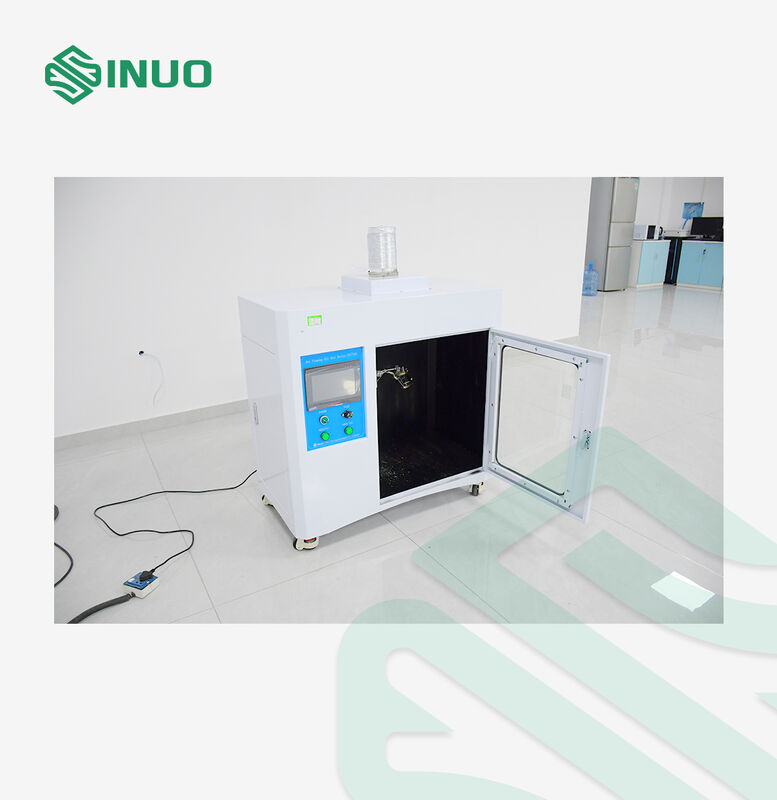

The Flammable Liquid Fire Test Apparatus is a specialized testing solution designed to evaluate the fire protection performance of electrical and electronic equipment enclosures. It simulates scenarios where flammable liquids used in equipment may ignite due to overheating, leak from protective enclosures, and potentially cause electrical fires, threatening both equipment reliability and personal safety.

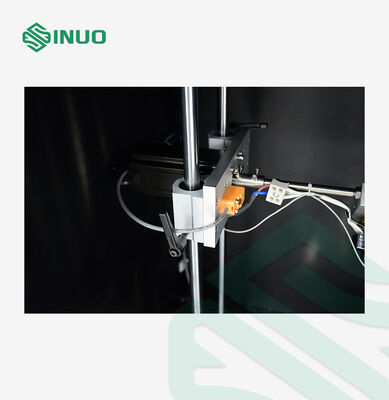

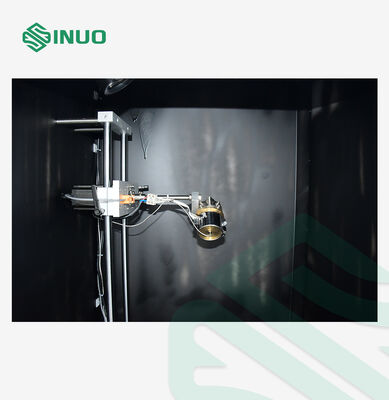

During testing, a precisely measured 10mL flammable liquid (with specified calorific value, density, and flash point) is heated to its ignition point in a metal ladle. After burning briefly, the motor-driven dispenser rotates the ladle at a defined height (100mm) and flow rate (1mL/s), pouring the liquid steadily onto the center of the test sample opening. The fire protection performance of the sample is assessed based on whether the specified ignition bedding (50mm away, 40g/m² density) ignites under these conditions.

This apparatus ensures controlled, repeatable testing and allows manufacturers, R&D centers, and quality laboratories to verify that their equipment enclosures meet strict fire safety requirements, reducing the risk of electrical fires and improving product safety.

Technical Parameters

Parameter model	SN7713A
Equipment size & weight	1130mm* 600mm* 1400mm, with a vent port of ф100mm, 147KGS
Control & display	Integrated PLC & touch screen
Working voltage	Match client’s local power supply requirements
Test area background color	Black
Ignition bedding material	Bleached CHEESECLOTH of approximately 40 g/m2
Hot flaming oil burning time	1 min (1s~999999s can be preset)
Hot flaming oil pouring time	10s (1s~999999s can be preset)
Hot flaming oil pouring height	100mm
Hot flaming oil pouring speed	1 ml/s
Distance between ignition bedding material and sample	Ignition bedding material is under the sample about 50mm
Volume of ladle	>10mL
Test oil	Average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL～0.865g/mL, flash point: 43.5℃~93.5℃
